Kling Camera Controls - ComfyUI Built-in Node Documentation

A node that provides camera control parameters for Kling video generation

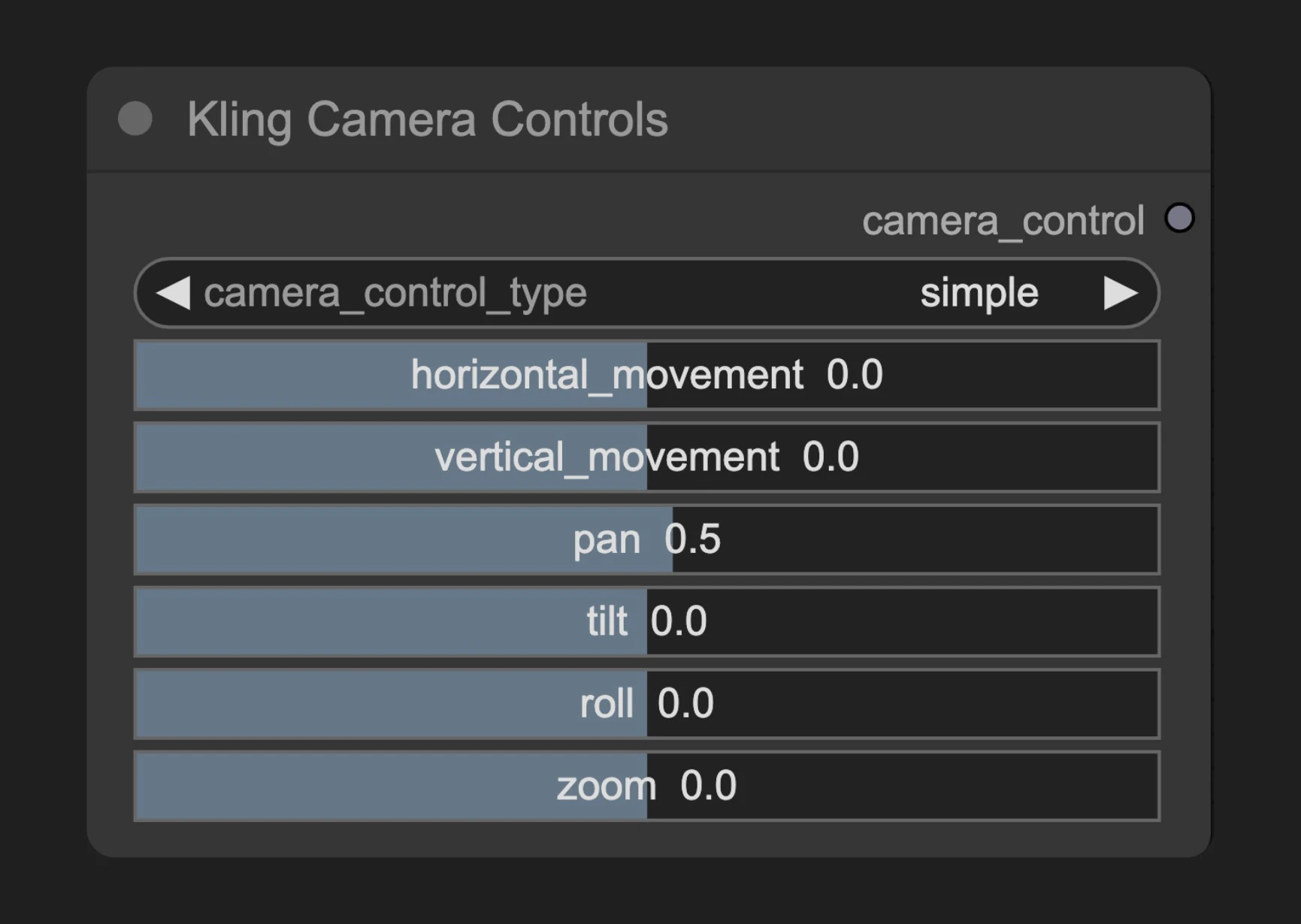

The Kling Camera Controls node defines virtual camera behavior parameters to control camera movement and view changes during Kling video generation.

Parameters

Parameter	Type	Default	Description
camera_control_type	Select	”simple”	Preset camera motion types. simple: Custom camera movement; down_back: Camera moves down and back; forward_up: Camera moves forward and up; right_turn_forward: Rotate right and move forward; left_turn_forward: Rotate left and move forward
horizontal_movement	Float	0	Controls camera movement on horizontal axis (x-axis). Negative values move left, positive values move right
vertical_movement	Float	0	Controls camera movement on vertical axis (y-axis). Negative values move down, positive values move up
pan	Float	0.5	Controls camera rotation in vertical plane (x-axis). Negative values rotate down, positive values rotate up
tilt	Float	0	Controls camera rotation in horizontal plane (y-axis). Negative values rotate left, positive values rotate right
roll	Float	0	Controls camera roll amount (z-axis). Negative values rotate counterclockwise, positive values rotate clockwise
zoom	Float	0	Controls camera focal length. Negative values narrow field of view, positive values widen it

Note: At least one non-zero camera control parameter is required for the effect to work.

Output

Output	Type	Description
camera_control	CAMERA_CONTROL	Configuration object with camera settings

Note: Not all model and mode combinations support camera control. Please check the Kling API documentation for details.

Source Code

[Node Source Code (Updated 2025-05-03)]

class KlingCameraControls(KlingNodeBase):
    """Kling Camera Controls Node"""

    @classmethod
    def INPUT_TYPES(cls):
        return {
            "required": {
                "camera_control_type": (
                    IO.COMBO,
                    {
                        "options": [
                            camera_control_type.value
                            for camera_control_type in CameraType
                        ],
                        "default": "simple",
                        "tooltip": "Predefined camera movements type. simple: Customizable camera movement. down_back: Camera descends and moves backward. forward_up: Camera moves forward and tilts up. right_turn_forward: Rotate right and move forward. left_turn_forward: Rotate left and move forward.",
                    },
                ),
                "horizontal_movement": get_camera_control_input_config(
                    "Controls camera's movement along horizontal axis (x-axis). Negative indicates left, positive indicates right"
                ),
                "vertical_movement": get_camera_control_input_config(
                    "Controls camera's movement along vertical axis (y-axis). Negative indicates downward, positive indicates upward."
                ),
                "pan": get_camera_control_input_config(
                    "Controls camera's rotation in vertical plane (x-axis). Negative indicates downward rotation, positive indicates upward rotation.",
                    default=0.5,
                ),
                "tilt": get_camera_control_input_config(
                    "Controls camera's rotation in horizontal plane (y-axis). Negative indicates left rotation, positive indicates right rotation.",
                ),
                "roll": get_camera_control_input_config(
                    "Controls camera's rolling amount (z-axis). Negative indicates counterclockwise, positive indicates clockwise.",
                ),
                "zoom": get_camera_control_input_config(
                    "Controls change in camera's focal length. Negative indicates narrower field of view, positive indicates wider field of view.",
                ),
            }
        }

    DESCRIPTION = "Kling Camera Controls Node. Not all model and mode combinations support camera control. Please refer to the Kling API documentation for more information."
    RETURN_TYPES = ("CAMERA_CONTROL",)
    RETURN_NAMES = ("camera_control",)
    FUNCTION = "main"

    @classmethod
    def VALIDATE_INPUTS(
        cls,
        horizontal_movement: float,
        vertical_movement: float,
        pan: float,
        tilt: float,
        roll: float,
        zoom: float,
    ) -> bool | str:
        if not is_valid_camera_control_configs(
            [
                horizontal_movement,
                vertical_movement,
                pan,
                tilt,
                roll,
                zoom,
            ]
        ):
            return "Invalid camera control configs: at least one of the values must be non-zero"
        return True

    def main(
        self,
        camera_control_type: str,
        horizontal_movement: float,
        vertical_movement: float,
        pan: float,
        tilt: float,
        roll: float,
        zoom: float,
    ) -> tuple[CameraControl]:
        return (
            CameraControl(
                type=CameraType(camera_control_type),
                config=CameraConfig(
                    horizontal=horizontal_movement,
                    vertical=vertical_movement,
                    pan=pan,
                    roll=roll,
                    tilt=tilt,
                    zoom=zoom,
                ),
            ),
        )
